Conjugate Heat Transfer#
Objective#
This tutorial demonstrates how to model forced convection in a louvered fin heat exchanger. This case solves equations for both Fluid and Solid domain. As a result, temperature field evolved together.
This tutorial demonstrates how to perform the following tasks:
Calculate the fin heat transfer rate.
Use periodic boundaries to reduce the size of the computational domain.
Use a convective thermal boundary condition to represent heat transfer.
Examine and understand the relationship between flow and temperature.
Import required libraries/modules#
import csv
import os
from pathlib import Path
import platform
import matplotlib.pyplot as plt
import pyvista as pv
import ansys.fluent.core as pyfluent
from ansys.fluent.core import examples
from ansys.fluent.visualization import (
Contour,
GraphicsWindow,
Mesh,
Vector,
XYPlot,
)
filenames = {
"Windows": "cht_fin_htc_new.scdoc",
"Other": "cht_fin_htc_new.scdoc.pmdb",
}
geom_filename = examples.download_file(
filenames.get(platform.system(), filenames["Other"]),
"pyfluent/examples/CHT",
save_path=os.getcwd(),
)
Fluent Solution Setup#
Launch Fluent session with meshing mode and print Fluent version#
meshing_session = pyfluent.launch_fluent(
mode="meshing",
dimension=3,
precision="double",
processor_count=4,
)
print(meshing_session.get_fluent_version())
Start Watertight Geometry Meshing Workflow#
meshing_session.workflow.InitializeWorkflow(WorkflowType=r"Watertight Geometry")
meshing_session.workflow.TaskObject["Import Geometry"].Arguments = dict(
FileName=geom_filename
)
meshing_session.workflow.TaskObject["Import Geometry"].Execute()
meshing_session.workflow.TaskObject["Add Local Sizing"].Execute()
meshing_session.workflow.TaskObject["Generate the Surface Mesh"].Arguments = dict(
{
"CFDSurfaceMeshControls": {
"MinSize": 0.3,
"MaxSize": 1,
"ScopeProximityTo": "faces",
},
}
)
meshing_session.workflow.TaskObject["Generate the Surface Mesh"].Execute()
meshing_session.workflow.TaskObject["Describe Geometry"].UpdateChildTasks(
SetupTypeChanged=True
)
meshing_session.workflow.TaskObject["Describe Geometry"].Arguments.setState(
{
r"CappingRequired": r"No",
r"InvokeShareTopology": r"No",
r"NonConformal": r"Yes",
r"SetupType": r"The geometry consists of both fluid and solid regions and/or voids",
}
)
meshing_session.workflow.TaskObject["Describe Geometry"].Execute()
Update Interface Boundaries; Create Region#
meshing_session.workflow.TaskObject["Update Boundaries"].Arguments.setState(
{
r"BoundaryLabelList": [
r"interface-out-solid-a",
r"interface-out-high-a",
r"interface-out-low-a",
r"interface-4-solid-sweep",
r"interface-4-high-sweep",
r"interface-4-low-sweep",
r"interface-3-solid-sweep",
r"interface-3-high-sweep",
r"interface-3-low-sweep",
r"interface-2-solid-sweep",
r"interface-2-high-sweep",
r"interface-2-low-sweep",
r"interface-1-solid-sweep",
r"interface-1-high-sweep",
r"interface-1-low-sweep",
r"interface-solid-in-a",
r"interface-in-high-a",
r"interface-in-low-a",
r"interface-tube-2-solid-a",
r"interface-tube-2-high-a",
r"interface-tube-2-low-a",
r"interface-tube-1-solid-a",
r"interface-tube-1-high-a",
r"interface-tube-1-low-a",
r"interface-4-fluid-high-tet",
r"interface-4-fluid-low-tet",
r"interface-3-fluid-low-tet",
r"interface-3-fluid-high-tet",
r"interface-2-fluid-high-tet",
r"interface-2-fluid-low-tet",
r"interface-1-fluid-high-tet",
r"interface-1-fluid-low-tet",
r"interface-1-solid-tet-4",
r"interface-1-solid-tet-3",
r"interface-1-solid-tet-2",
r"interface-1-solid-tet-1",
],
r"BoundaryLabelTypeList": [
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
r"interface",
],
r"OldBoundaryLabelList": [
r"interface-out-solid-a",
r"interface-out-high-a",
r"interface-out-low-a",
r"interface-4-solid-sweep",
r"interface-4-high-sweep",
r"interface-4-low-sweep",
r"interface-3-solid-sweep",
r"interface-3-high-sweep",
r"interface-3-low-sweep",
r"interface-2-solid-sweep",
r"interface-2-high-sweep",
r"interface-2-low-sweep",
r"interface-1-solid-sweep",
r"interface-1-high-sweep",
r"interface-1-low-sweep",
r"interface-solid-in-a",
r"interface-in-high-a",
r"interface-in-low-a",
r"interface-tube-2-solid-a",
r"interface-tube-2-high-a",
r"interface-tube-2-low-a",
r"interface-tube-1-solid-a",
r"interface-tube-1-high-a",
r"interface-tube-1-low-a",
r"interface-4-fluid-high-tet",
r"interface-4-fluid-low-tet",
r"interface-3-fluid-low-tet",
r"interface-3-fluid-high-tet",
r"interface-2-fluid-high-tet",
r"interface-2-fluid-low-tet",
r"interface-1-fluid-high-tet",
r"interface-1-fluid-low-tet",
r"interface-1-solid-tet-4",
r"interface-1-solid-tet-3",
r"interface-1-solid-tet-2",
r"interface-1-solid-tet-1",
],
r"OldBoundaryLabelTypeList": [
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
r"wall",
],
r"OldLabelZoneList": [
r"interface-out-solid-a",
r"interface-out-high-a",
r"interface-out-low-a",
r"interface-4-solid-sweep",
r"interface-4-high-sweep",
r"interface-4-low-sweep",
r"interface-3-solid-sweep",
r"interface-3-high-sweep",
r"interface-3-low-sweep",
r"interface-2-solid-sweep",
r"interface-2-high-sweep",
r"interface-2-low-sweep",
r"interface-1-solid-sweep",
r"interface-1-high-sweep",
r"interface-1-low-sweep",
r"interface-solid-in-a",
r"interface-in-high-a",
r"interface-in-low-a",
r"interface-tube-2-solid-a.2",
r"interface-tube-2-solid-a.1",
r"interface-tube-2-solid-a",
r"interface-tube-2-high-a.2",
r"interface-tube-2-high-a.1",
r"interface-tube-2-high-a",
r"interface-tube-2-low-a.2",
r"interface-tube-2-low-a.1",
r"interface-tube-2-low-a",
r"interface-tube-1-solid-a.2",
r"interface-tube-1-solid-a.1",
r"interface-tube-1-solid-a",
r"interface-tube-1-high-a.2",
r"interface-tube-1-high-a.1",
r"interface-tube-1-high-a",
r"interface-tube-1-low-a.2",
r"interface-tube-1-low-a.1",
r"interface-tube-1-low-a",
r"interface-4-fluid-high-tet",
r"interface-4-fluid-low-tet",
r"interface-3-fluid-low-tet",
r"interface-3-fluid-high-tet",
r"interface-2-fluid-high-tet",
r"interface-2-fluid-low-tet",
r"interface-1-fluid-high-tet",
r"interface-1-fluid-low-tet",
r"interface-1-solid-tet-4",
r"interface-1-solid-tet-3",
r"interface-1-solid-tet-2",
r"interface-1-solid-tet-1",
],
}
)
meshing_session.workflow.TaskObject["Update Boundaries"].Execute()
meshing_session.workflow.TaskObject["Create Regions"].Execute()
Custom Journal for Creating Periodicity due to Non-Conformal Objects#
meshing_session.workflow.TaskObject["Describe Geometry"].InsertNextTask(
CommandName=r"RunCustomJournal"
)
meshing_session.workflow.TaskObject["Run Custom Journal"].Rename(
NewName=r"set-periodicity"
)
meshing_session.workflow.TaskObject["set-periodicity"].Arguments = dict(
{
r"JournalString": r"""/bo rps translational semi-auto periodic-1-high periodic-2-high periodic-3-high periodic-4-high , 0 0 -2.3
/bo rps translational semi-auto periodic-5* , 0 0 -2.3
/bo rps translational semi-auto periodic-6-high , 0 0 -2.3
/bo rps translational semi-auto periodic-7-high , 0 0 -2.3
""",
}
)
meshing_session.workflow.TaskObject["set-periodicity"].Execute()
Update Boundary Layer Task#
meshing_session.workflow.TaskObject["Update Regions"].Execute()
meshing_session.workflow.TaskObject["Add Boundary Layers"].AddChildToTask()
meshing_session.workflow.TaskObject["Add Boundary Layers"].InsertCompoundChildTask()
meshing_session.workflow.TaskObject["smooth-transition_1"].Rename(
NewName=r"aspect-ratio_1"
)
meshing_session.workflow.TaskObject["aspect-ratio_1"].Arguments.setState(
{
"BLControlName": r"aspect-ratio_1",
"BLRegionList": [
r"fluid-tet-4",
r"fluid-tet-3",
r"fluid-tet-2",
r"fluid-tet-1",
r"fluid-sweep-fin2",
r"fluid-sweep-fin1",
r"fluid-sweep-fin5",
r"fluid-sweep-fin3",
r"fluid-sweep-fin6",
r"fluid-sweep-fin4",
r"fluid-in",
r"fluid-out",
],
r"BLZoneList": [
r"wall-fluid-tet-4-solid-tet-4",
r"wall-fluid-tet-3-solid-tet-3",
r"wall-fluid-tet-2-solid-tet-2",
r"wall-fluid-tet-2-solid-tet-2-wall-fluid-tet-3-solid-tet-3-fluid-tet-2-solid-tet-2",
r"wall-fluid-tet-1-solid-tet-1",
r"wall-fluid-sweep-fin-solid-sweep-fin.1",
r"wall-fluid-sweep-fin-solid-sweep-fin",
r"wall-fluid-sweep-fin-solid-sweep-fin.5",
r"wall-fluid-sweep-fin-solid-sweep-fin.4",
r"wall-fluid-sweep-fin-solid-sweep-fin.3",
r"wall-fluid-sweep-fin-solid-sweep-fin.2",
],
r"BlLabelList": r"wall*",
r"CompleteBlLabelList": [
r"wall-fluid-sweep-fin-solid-sweep-fin",
r"wall-fluid-tet-1-solid-tet-1",
r"wall-fluid-tet-2-solid-tet-2",
r"wall-fluid-tet-3-solid-tet-3",
r"wall-fluid-tet-4-solid-tet-4",
],
r"FaceScope": {
r"GrowOn": r"selected-labels",
},
r"OffsetMethodType": r"aspect-ratio",
}
)
meshing_session.workflow.TaskObject["aspect-ratio_1"].Execute()
Generate Mesh#
meshing_session.workflow.TaskObject["Generate the Volume Mesh"].Execute()
Improve Volume Mesh#
meshing_session.workflow.TaskObject["Generate the Volume Mesh"].InsertNextTask(
CommandName=r"ImproveVolumeMesh"
)
meshing_session.workflow.TaskObject["Improve Volume Mesh"].Arguments.setState(
{
r"CellQualityLimit": 0.05,
r"VMImprovePreferences": {
r"ShowVMImprovePreferences": False,
r"VIQualityIterations": 5,
r"VIQualityMinAngle": 0,
r"VIgnoreFeature": r"yes",
},
}
)
meshing_session.workflow.TaskObject["Improve Volume Mesh"].Execute()
Save Mesh File#
save_mesh_as = str(Path(pyfluent.EXAMPLES_PATH) / "hx-fin-2mm.msh.h5")
meshing_session.tui.file.write_mesh(save_mesh_as)
Switch to Solution Mode#
solver_session = meshing_session.switch_to_solver()
Auto-create Mesh Interfaces#
solver_session.tui.define.mesh_interfaces.create("int", "yes", "no")
Mesh Check; Review Fluent transcript for errors#
solver_session.mesh.check()
Create a few boundary list for display and post-processing#
mesh1 = Mesh(solver=solver_session)
wall_list = []
periodic_list = []
symmetry_list = []
for item in mesh1.surfaces.allowed_values:
if len(item.split("wall")) > 1:
wall_list.append(item)
if len(item.split("periodic")) > 1:
periodic_list.append(item)
if len(item.split("symmetry")) > 1:
symmetry_list.append(item)
Display Mesh#
mesh1.show_edges = True
mesh1.surfaces = wall_list
window1 = GraphicsWindow()
window1.add_graphics(mesh1)
window1.show()
p = window1.renderer
p.view_isometric()
p.add_axes()
p.add_floor(offset=1, show_edges=False)
light = pv.Light(light_type="headlight")
p.add_light(light)
Temperature, Energy, Laminar Viscous Model#
Set Temperature Unit
Enable Energy Equation
Enable Laminar Viscous Model
solver_session.setup.general.units.set_units(
quantity="temperature", units_name="C", scale_factor=1.0, offset=273.15
)
solver_session.setup.models.energy.enabled = True
solver_session.setup.models.viscous.model.set_state("laminar")
Change a few material properties of default Air#
air_dict = solver_session.setup.materials.fluid["air"].get_state()
air_dict["density"]["value"] = 1.2
air_dict["viscosity"]["value"] = 1.5e-5
air_dict["thermal_conductivity"]["value"] = 0.026
air_dict["specific_heat"]["value"] = 1006.0
solver_session.setup.materials.fluid["air"].set_state(air_dict)
Change a few material properties of default Aluminum#
al_dict = solver_session.setup.materials.solid["aluminum"].get_state()
al_dict["density"]["value"] = 2719.0
al_dict["thermal_conductivity"]["value"] = 200.0
al_dict["specific_heat"]["value"] = 871.0
solver_session.setup.materials.solid["aluminum"].set_state(al_dict)
Copy Copper and change a few material properties of default Copper#
solver_session.setup.materials.database.copy_by_name(type="solid", name="copper")
cu_dict = solver_session.setup.materials.solid["copper"].get_state()
cu_dict["density"]["value"] = 8978.0
cu_dict["thermal_conductivity"]["value"] = 340.0
cu_dict["specific_heat"]["value"] = 381.0
solver_session.setup.materials.solid["copper"].set_state(cu_dict)
Set Tube Cell Zone Material as Copper#
tube_dict = solver_session.setup.cell_zone_conditions.solid["solid-tube-1"].get_state()
tube_dict["material"] = "copper"
solver_session.setup.cell_zone_conditions.solid["solid-tube-1"].set_state(tube_dict)
tube_dict = solver_session.setup.cell_zone_conditions.solid["solid-tube-2"].get_state()
tube_dict["material"] = "copper"
solver_session.setup.cell_zone_conditions.solid["solid-tube-2"].set_state(tube_dict)
Set Boundary Condition for Inlet and Outlet#
solver_session.setup.boundary_conditions.velocity_inlet["inlet"].momentum.velocity = 4.0
solver_session.setup.boundary_conditions.velocity_inlet["inlet"].thermal.temperature = (
293.15 # Need to specify in Kelvin
)
solver_session.setup.boundary_conditions.pressure_outlet[
"outlet"
].thermal.backflow_total_temperature = 293.15
Set Thermal Boundary Condition for Wall Inner Tube#
solver_session.setup.boundary_conditions.wall[
"wall-inner-tube-1"
].thermal.thermal_condition = "Convection"
solver_session.setup.boundary_conditions.wall[
"wall-inner-tube-1"
].thermal.heat_transfer_coeff = 1050.0
solver_session.setup.boundary_conditions.wall[
"wall-inner-tube-1"
].thermal.free_stream_temp = 353.15
solver_session.setup.boundary_conditions.copy(
from_="wall-inner-tube-1", to="wall-inner-tube-2"
)
Enable HOTR#
solver_session.solution.methods.high_order_term_relaxation.enable = True
Define Report Definitions#
solver_session.solution.report_definitions.surface["outlet-enthalpy-flow"] = {}
solver_session.solution.report_definitions.surface[
"outlet-enthalpy-flow"
].report_type = "surface-flowrate"
solver_session.solution.report_definitions.surface["outlet-enthalpy-flow"].field = (
"enthalpy"
)
solver_session.solution.report_definitions.surface[
"outlet-enthalpy-flow"
].surface_names = ["outlet"]
solver_session.solution.report_definitions.surface["avg-pressure-inlet"] = {}
solver_session.solution.report_definitions.surface["avg-pressure-inlet"].report_type = (
"surface-areaavg"
)
solver_session.solution.report_definitions.surface["avg-pressure-inlet"].field = (
"pressure"
)
solver_session.solution.report_definitions.surface[
"avg-pressure-inlet"
].surface_names = ["inlet"]
solver_session.solution.report_definitions.volume["max-vel-louvers4"] = {}
solver_session.solution.report_definitions.volume["max-vel-louvers4"].report_type = (
"volume-max"
)
solver_session.solution.report_definitions.volume["max-vel-louvers4"].field = (
"velocity-magnitude"
)
solver_session.solution.report_definitions.volume["max-vel-louvers4"].cell_zones = [
"fluid-tet-4"
]
solver_session.solution.report_definitions.surface["wall-shear-int"] = {}
solver_session.solution.report_definitions.surface["wall-shear-int"].report_type = (
"surface-integral"
)
solver_session.solution.report_definitions.surface["wall-shear-int"].field = (
"wall-shear"
)
solver_session.solution.report_definitions.surface["wall-shear-int"].surface_names = [
"wall-fluid-sweep-fin-solid-sweep-fin-shadow",
"wall-fluid-tet-1-solid-tet-1",
"wall-fluid-tet-2-solid-tet-2",
"wall-fluid-tet-3-solid-tet-3",
"wall-fluid-tet-4-solid-tet-4",
]
solver_session.solution.monitor.report_plots.create(name="outlet-enthalpy-flow-plot")
solver_session.solution.monitor.report_plots[
"outlet-enthalpy-flow-plot"
].report_defs = "outlet-enthalpy-flow"
solver_session.solution.monitor.report_files["outlet-enthalpy-flow-file"] = {}
solver_session.solution.monitor.report_files["outlet-enthalpy-flow-file"] = {
"report_defs": ["outlet-enthalpy-flow"],
"file_name": r"outlet-enthalpy-flow.out",
}
solver_session.solution.monitor.report_plots["avg-pressure-inlet-plot"] = {}
solver_session.solution.monitor.report_plots["avg-pressure-inlet-plot"] = {
"report_defs": ["avg-pressure-inlet"]
}
solver_session.solution.monitor.report_files["avg-pressure-inlet-file"] = {}
solver_session.solution.monitor.report_files["avg-pressure-inlet-file"] = {
"report_defs": ["avg-pressure-inlet"],
"file_name": r"avg-pressure-inlet.out",
}
solver_session.solution.monitor.report_plots["max-vel-louvers4-plot"] = {}
solver_session.solution.monitor.report_plots["max-vel-louvers4-plot"] = {
"report_defs": ["max-vel-louvers4"]
}
solver_session.solution.monitor.report_files["max-vel-louvers4-file"] = {}
solver_session.solution.monitor.report_files["max-vel-louvers4-file"] = {
"report_defs": ["max-vel-louvers4"],
"file_name": r"max-vel-louvers4.out",
}
solver_session.solution.monitor.report_plots["wall-shear-int-plot"] = {}
solver_session.solution.monitor.report_plots["wall-shear-int-plot"] = {
"report_defs": ["wall-shear-int"]
}
solver_session.solution.monitor.report_files["wall-shear-int-file"] = {}
solver_session.solution.monitor.report_files["wall-shear-int-file"] = {
"report_defs": ["wall-shear-int"],
"file_name": r"wall-shear-int.out",
}
Hybrid Initialization; Slit Interior between Solid Zones; Save Case#
solver_session.solution.initialization.initialization_type = "hybrid"
solver_session.solution.initialization.hybrid_initialize()
solver_session.setup.boundary_conditions.slit_interior_between_diff_solids()
solver_session.file.write(file_type="case", file_name="hx-fin-2mm.cas.h5")
Set Aggressive Length Scale Method; Run Calculation & Save Data#
solver_session.solution.run_calculation.pseudo_time_settings.time_step_method.time_step_method = (
"automatic"
)
solver_session.solution.run_calculation.pseudo_time_settings.time_step_method.length_scale_methods = (
"aggressive"
)
solver_session.solution.run_calculation.iterate(iter_count=250)
solver_session.file.write(file_type="case-data", file_name="hx-fin-2mm.dat.h5")
Post-Processing Mass Balance Report#
inlet_mfr = solver_session.scheme.exec(
('(ti-menu-load-string "/report/fluxes/mass-flow no inlet () no")',)
).split(" ")[-1]
outlet_mfr = solver_session.scheme.exec(
('(ti-menu-load-string "/report/fluxes/mass-flow no outlet () no")',)
).split(" ")[-1]
net_mfr = solver_session.scheme.exec(
('(ti-menu-load-string "/report/fluxes/mass-flow no inlet outlet () no")',)
).split(" ")[-1]
print("Mass Balance Report\n")
print("Inlet (kg/s): ", inlet_mfr)
print("Outlet (kg/s): ", outlet_mfr)
print("Net (kg/s): ", net_mfr)
Heat Balance Report#
htr = solver_session.scheme.exec(
('(ti-menu-load-string "/report/fluxes/heat-transfer yes no")',)
).split(" ")[-1]
print("Heat Balance Report\n")
print("Net Imbalance (Watt): ", htr)

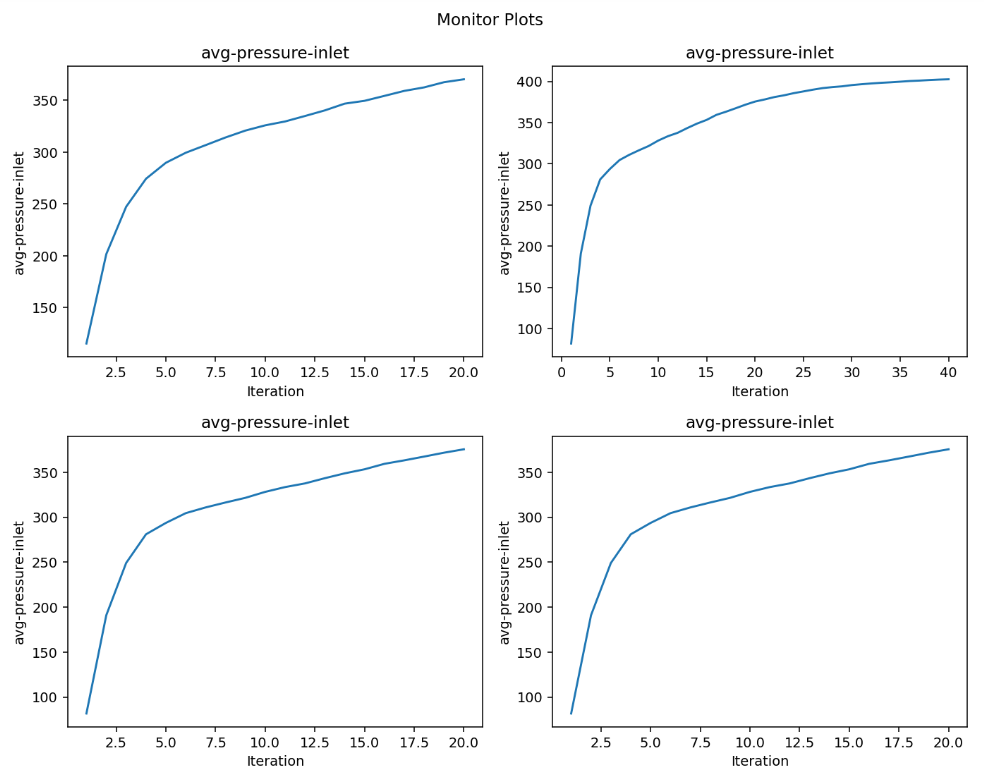

Plot Monitors#
fig, axs = plt.subplots(2, 2, figsize=(10, 8))
fig.suptitle("Monitor Plots")
outFilesList = []
fileList = os.listdir(os.getcwd())
for tempFile in fileList:
fName, ext = os.path.splitext(tempFile)
if ext == ".out":
outFilesList.append(tempFile)
outFilesList.sort()
index = 0
for ax in axs.flat:
X = []
Y = []
i = -1
with open(outFilesList[index], "r") as datafile:
plotting = csv.reader(datafile, delimiter=" ")
for rows in plotting:
i += 1
if i == 1:
var = rows[1]
if i > 2:
X.append(int(rows[0]))
Y.append(float(rows[1]))
ax.plot(X, Y)
ax.set(xlabel="Iteration", ylabel=var, title=var)
index += 1
plt.tight_layout()
Show graph#
plt.show()
Average Pressure
Contour Plot#
contour1 = Contour(solver=solver_session, field="temperature", surfaces=wall_list)
window2 = GraphicsWindow()
window2.add_graphics(contour1)
window2.show()
p = window2.renderer
p.view_isometric()
p.add_axes()
p.add_floor(offset=1, show_edges=False)
# known vtk issue in rendering the below
# p.add_text(
# "Contour of Temperature on Walls", font="courier", color="grey", font_size=10
# )
light = pv.Light(light_type="headlight")
p.add_light(light)
p.scalar_bar.SetVisibility(False)
p.add_scalar_bar(
"Temperature [K]",
interactive=True,
vertical=False,
title_font_size=20,
label_font_size=15,
outline=False,
position_x=0.5,
fmt="%10.1f",
)
Create Iso-Surface of X=0.012826 m#
solver_session.results.surfaces.iso_surface["x=0.012826"] = {}
solver_session.results.surfaces.iso_surface["x=0.012826"].field = "x-coordinate"
solver_session.results.surfaces.iso_surface["x=0.012826"] = {"iso_values": [0.012826]}
Vecotor Plot#
vector1 = Vector(solver=solver_session, surfaces=["x=0.012826"], scale=2.0, skip=5)
window3 = GraphicsWindow()
window3.add_graphics(vector1)
window3.show()
p = window3.renderer
p.view_isometric()
p.add_axes()
# known vtk issues in rendering the below
# p.add_floor( offset=1, show_edges=False)
# p.add_text("Vector Plot", font="courier", color="grey", font_size=10)
light = pv.Light(light_type="headlight")
p.add_light(light)
p.scalar_bar.SetVisibility(False)
p.add_scalar_bar(
"Velocity [m/s]",
interactive=True,
vertical=False,
title_font_size=20,
label_font_size=15,
outline=False,
position_x=0.5,
fmt="%10.1f",
)
XY Plot of Pressure#
p1 = XYPlot(
solver=solver_session,
surfaces=["x=0.012826"],
y_axis_function="pressure",
x_axis_function="direction-vector",
direction_vector=[0, 1, 0],
)
Show graph#
plot_window = GraphicsWindow()
plot_window.add_plot(p1)
plot_window.show()
XY Plot of Pressure
Exit Fluent Session#
solver_session.exit()
